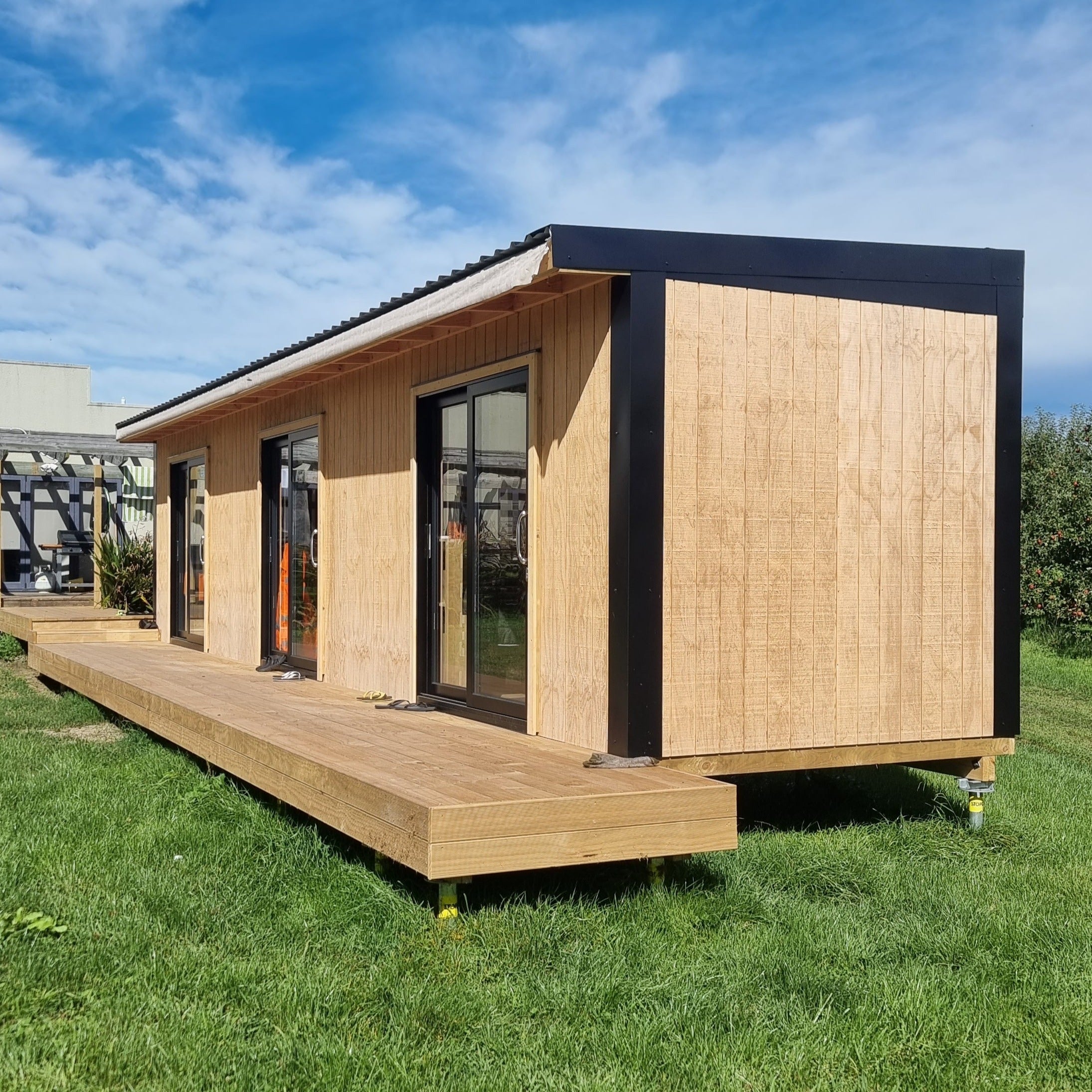

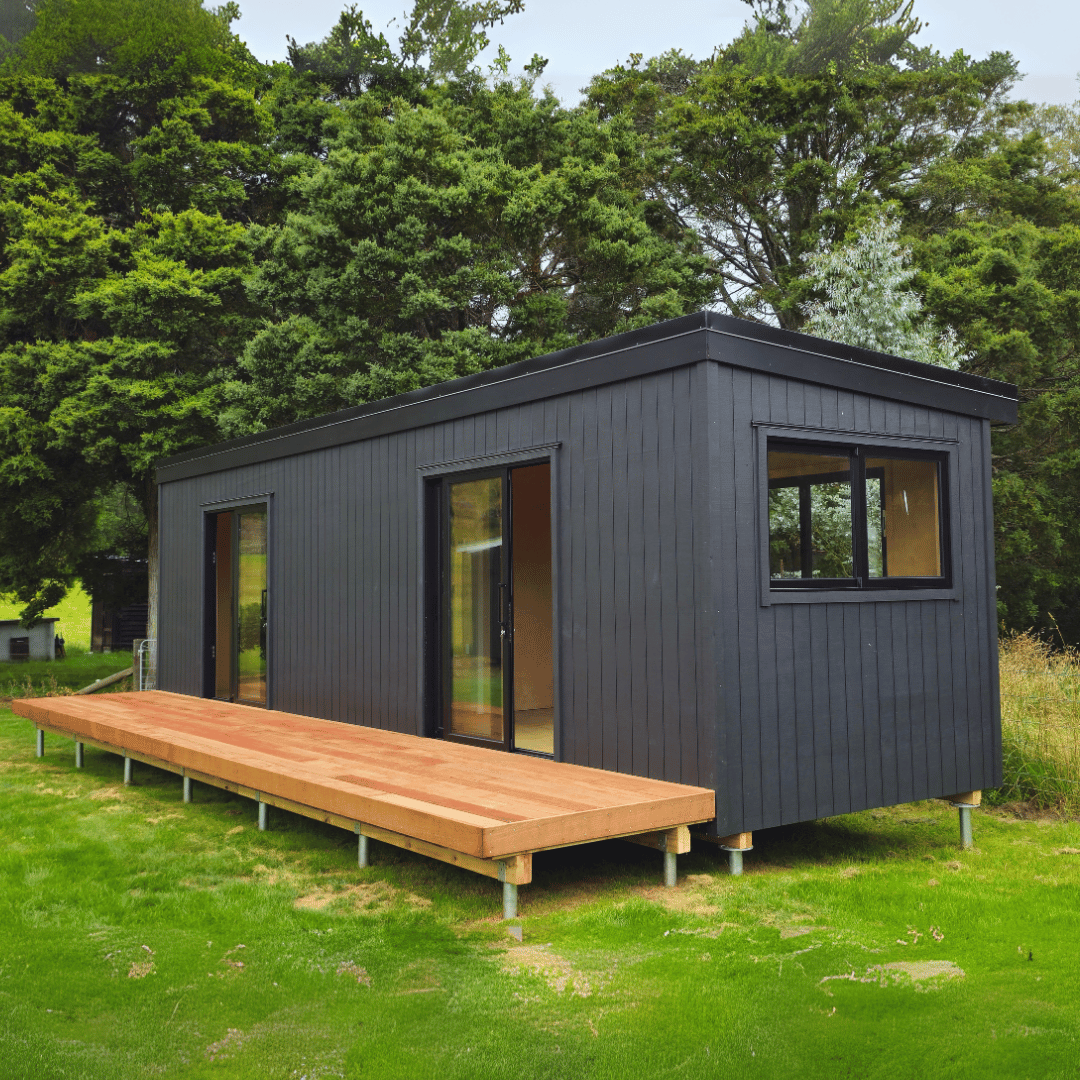

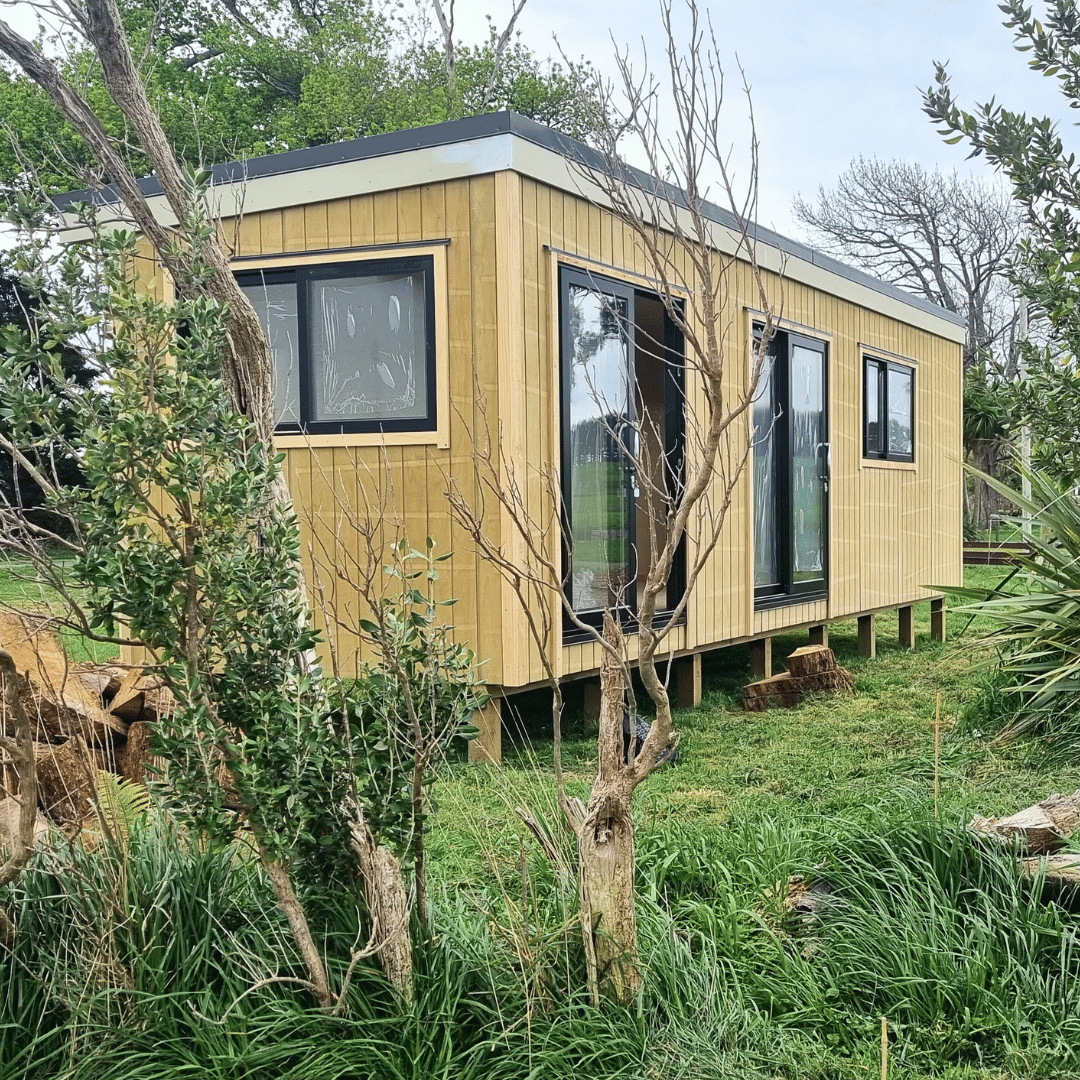

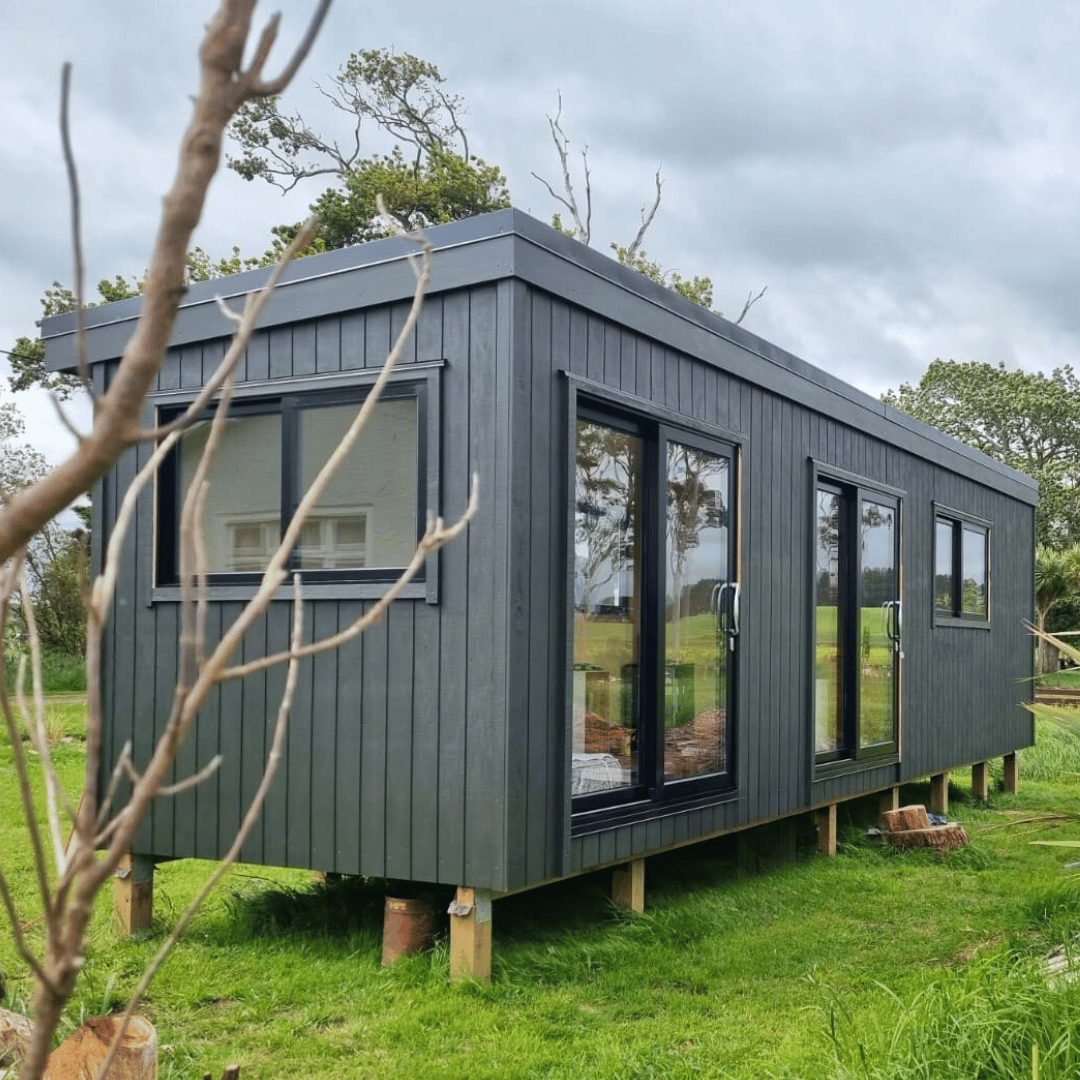

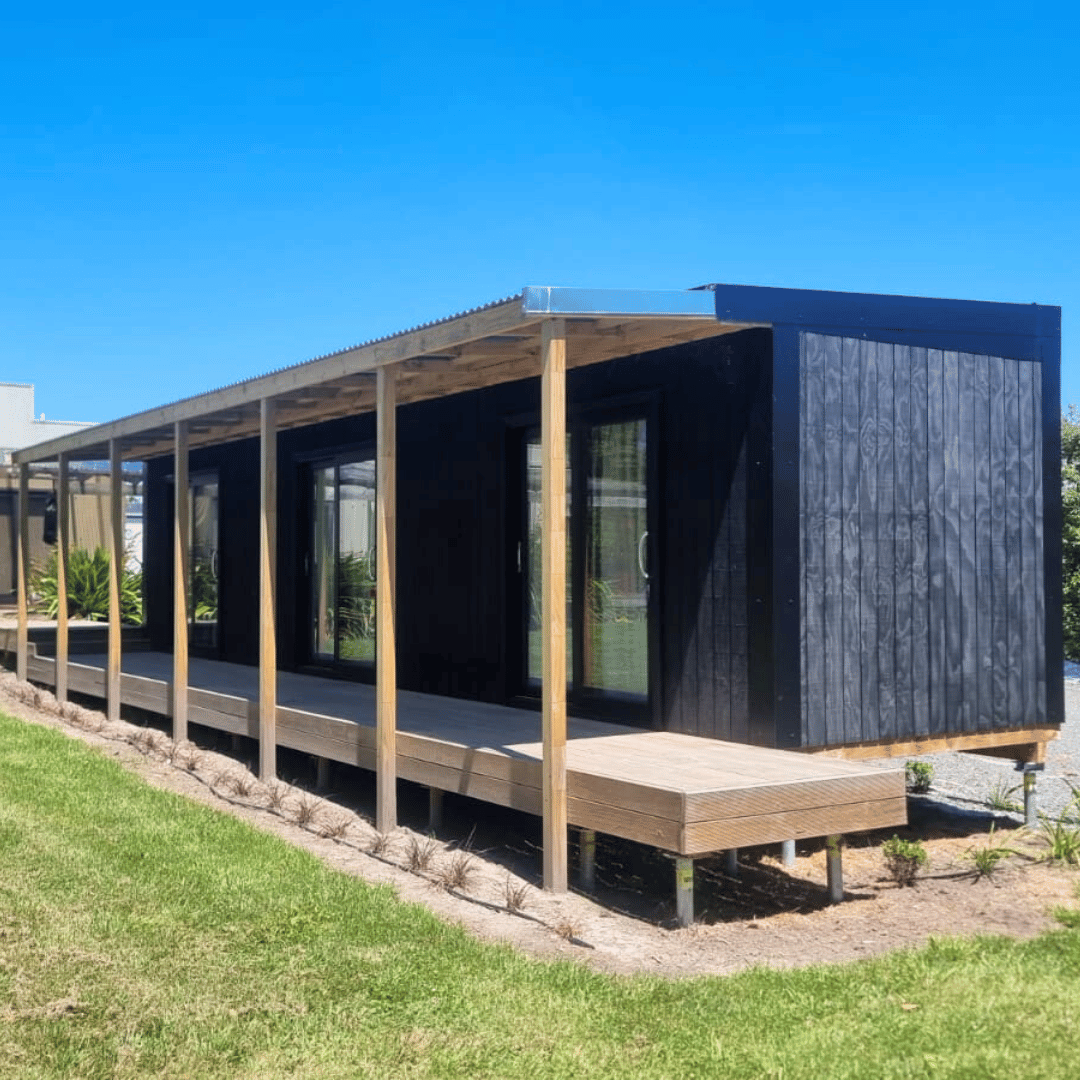

Kākāpō Cabin 9.6m x 2.6m

Kākāpō Cabin 9.6m x 2.6m

Regular price $49,900.00 NZD
Regular price Sale price $49,900.00 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.

Kākāpō Cabin Specs

Colour Natural Pine

Framing Timber 90 x 45mm & 140 x 45mm H1.2 Timber

External Shell Groove, Textured, Board and Batten 12mm H3.2 Plywood Cladding

Roof Material Roofing Industries TrimRib Roofing

Floor and Ceiling Material 140 x 45mm H3.2 Timber

Roof Style Mono-Pitch

Gross Weight 3ton

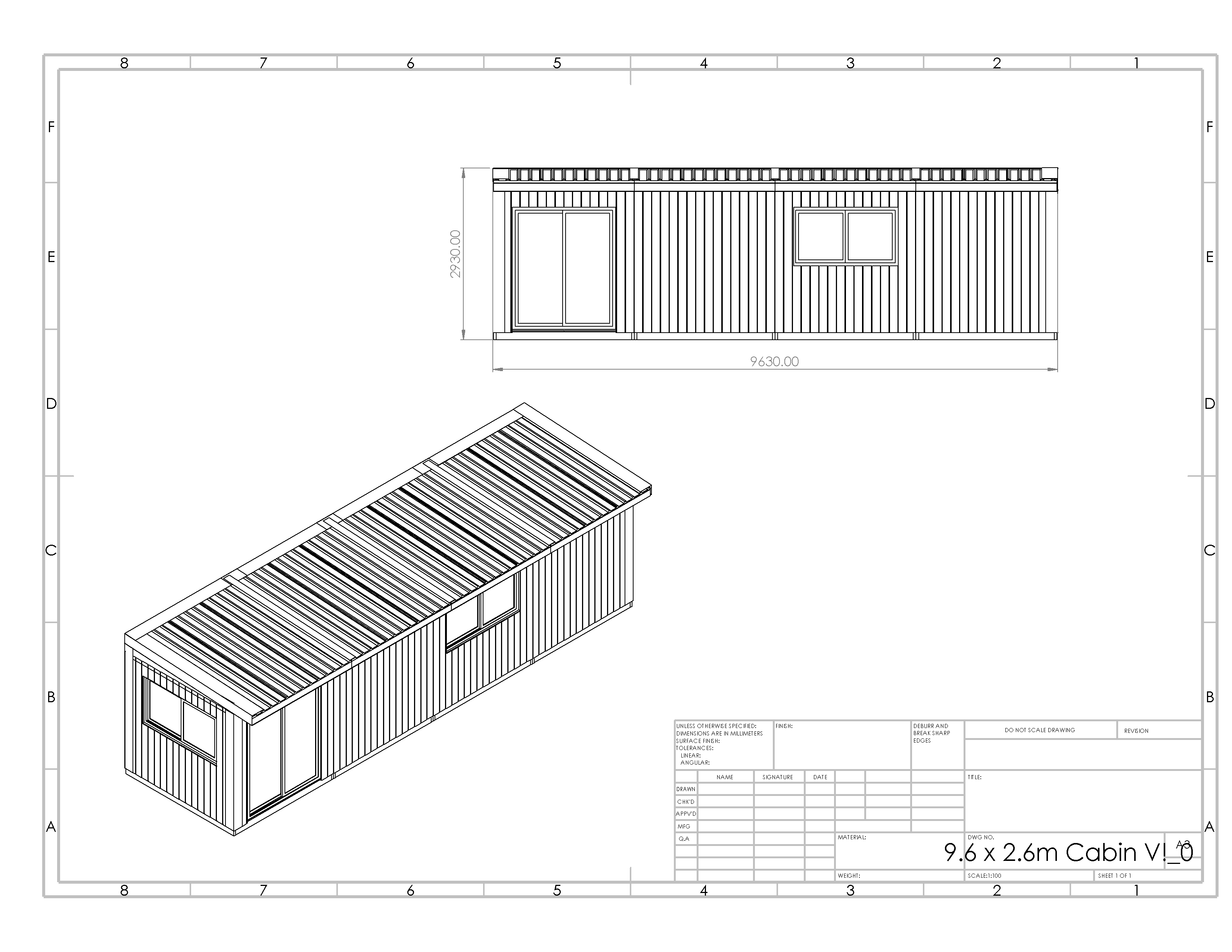

Footprint Dimensions L 9.6m x W 2.6m

Footprint Size 24.96sqm

Overhang Dimensions 400mm

Ridge Height 2930mm

Eaves Height 2400mm

Max. Ceiling Height (internal) 2515mm

Min. Ceiling Height (internal) 2400mm

Wall Thickness 111mm

Roof thickness 192mm

Wall, Floor & Ceiling Insulation Glass Wool wall + ceiling, Expol underfloor

Aluminium Framed Window (Argon-filled double glazing) 2x sliding glass window (opens both ends)

Aluminium Framed Door  (Argon-filled double glazing) 1x sliding glass door (opens both ends)

Glass Double-Glazed Argon-filled toughened glass

Optional Extras

Additional Add-ons

Electrical Fittings
  • Down Light
  • Light Swtich
  • Double Plug
  • Caravan Plug + Breaker Box

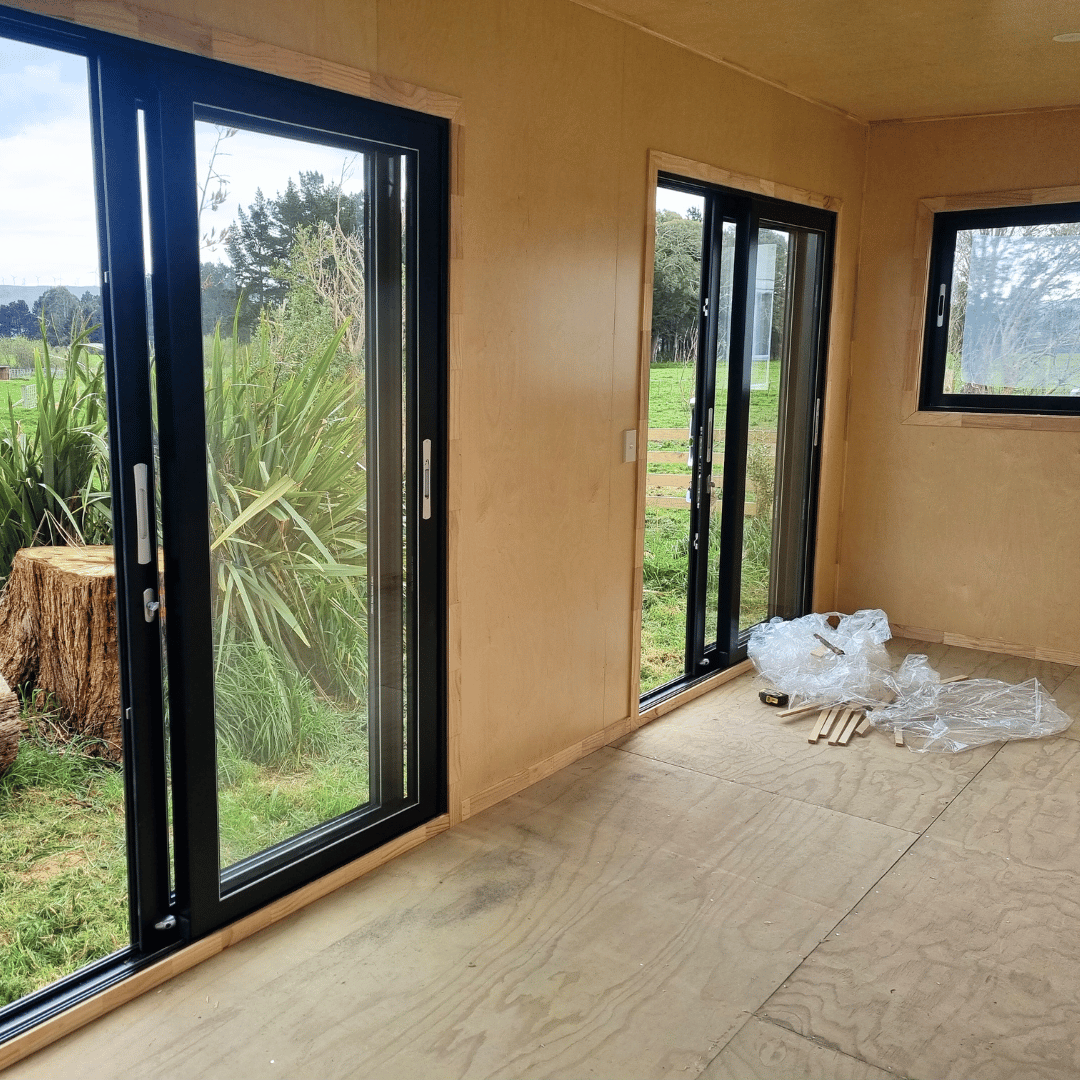

  • 1800 x 1000mm Double-glazed Aluminium framed sliding window
  • 2100 x 1800mm Double-glazed Aluminium framed sliding door
  • 400 x 500mm Double-glazed Aluminium framed window
  • Full internal wall
  • Internal wall with sliding barn door
  • Internal wall with cavity door
  • Internally painted
  • Vinyl flooring

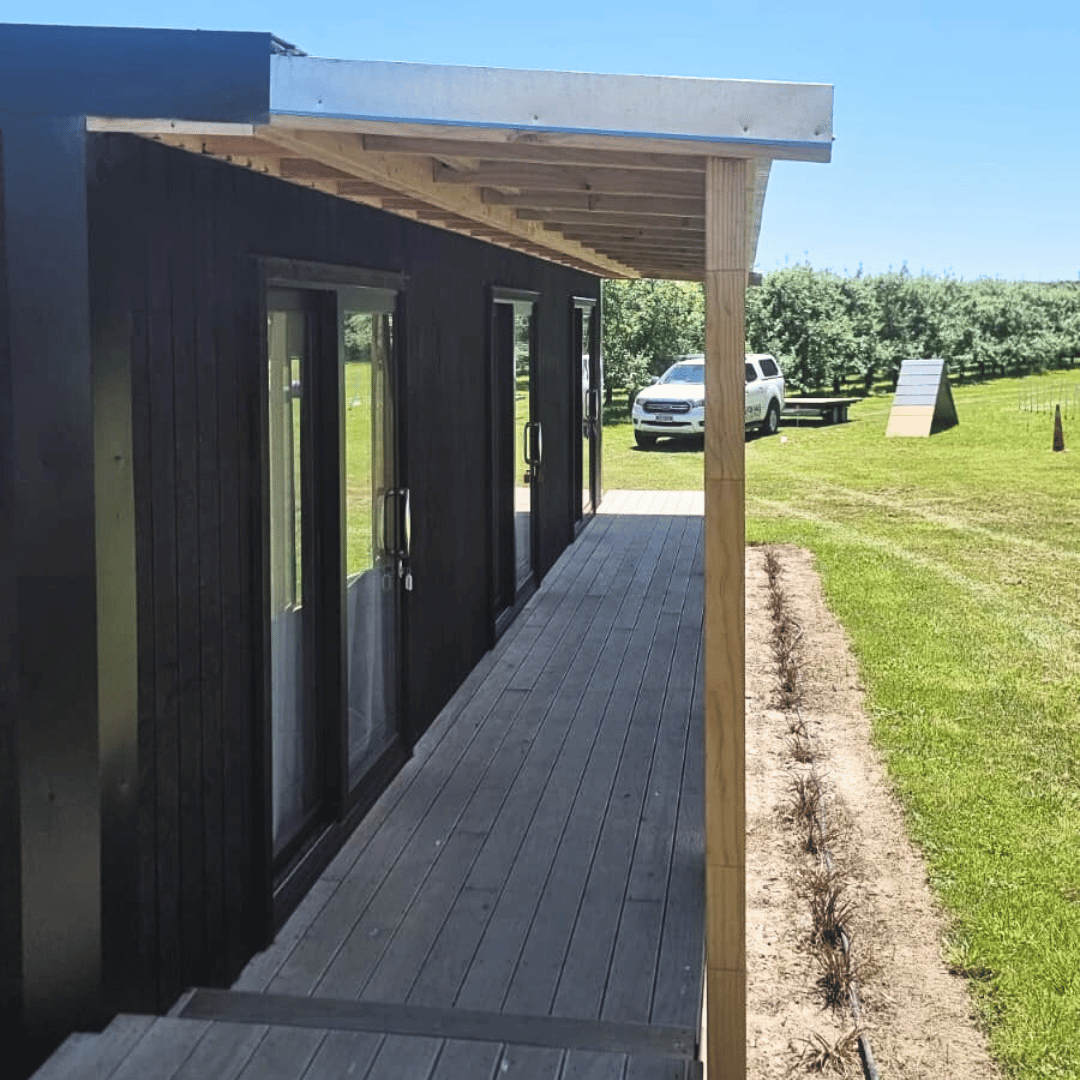

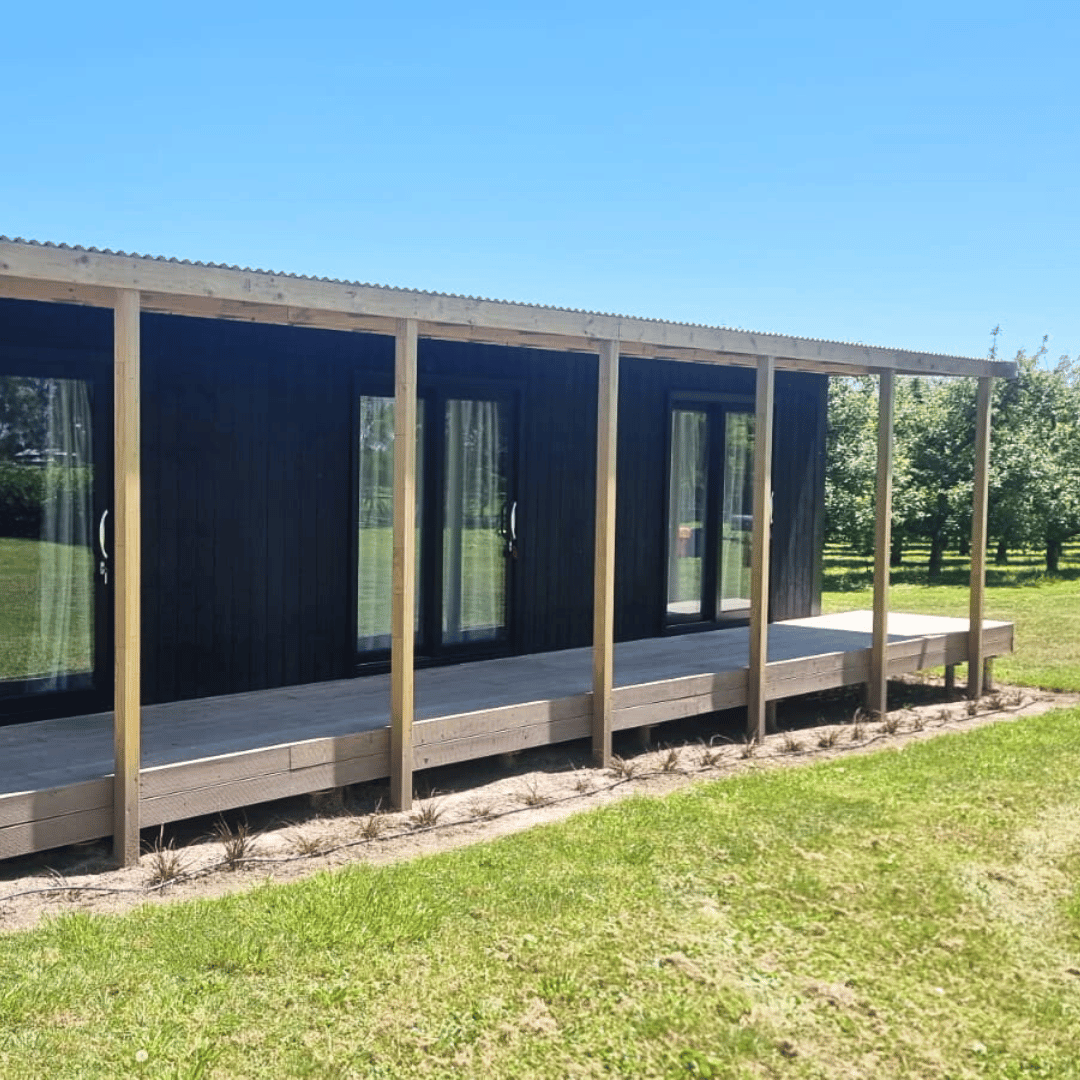

  • Kwila deck and/or verandah

Payment Options

Payment Options:

Finance Available

Enjoy your cabin now, pay later!

Powered by our friends at The Team in Napier, we are now offering finance payment option.

Get in touch with our team today to get the ball rolling!

Cash Payment

50% deposit is required to secure your order. The balance is required within the first 7 days of delivery/collection.

Feel free to let us know if you have any questions! You can email the team here with a query or for a quote.

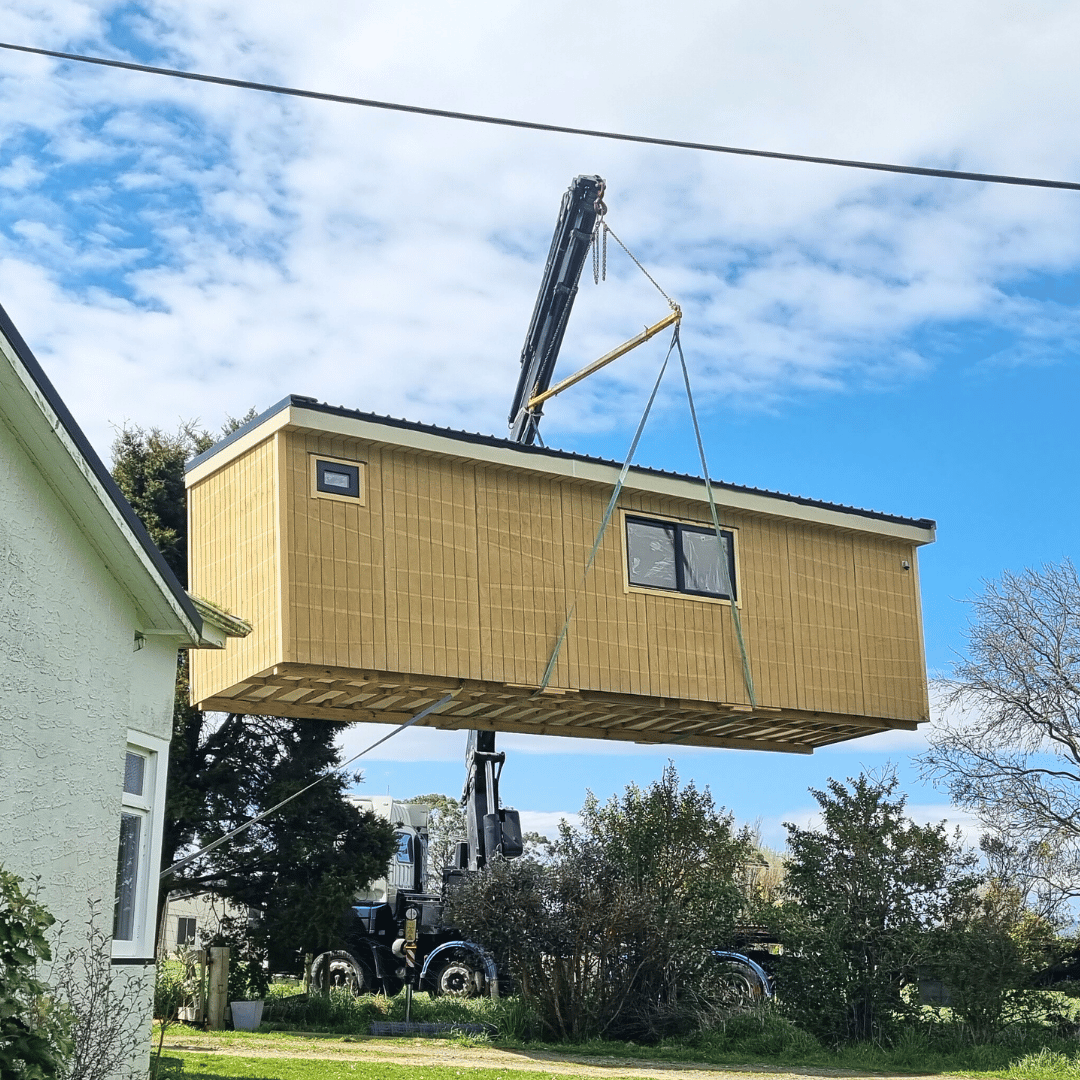

Cabins are transported on a hiab from our workshop in Hastings, Hawke's Bay.
Delivery costs are based off time and distance, please get in touch if you'd like a delivery estimate.

Perfect for a self contained tiny home, the larger size of this cabin creates feelings of space whilst staying under 30 square metres.

Useful for RSE Accomodation, tiny homes, multiple bedroom units, site offices, offices.


  • Double-glazed, toughened, Argon-filled joinery
  • Electrical fittings, caravan plug + breaker box
  • Externally painted (colour options available)
  • Carpet + underlay
  • Fully insulated

Sharp rates for delivery nationwide

Get in touch to discuss your project and get a new roof over to your place!

Email to order or fill out form here for a quote
